Stuck in low range 4X4 ! Ford Truck Powerstroke F250 Super Duty.


Well as fate would have it, after all this going on, my damn truck got stuck in 4 wheel low yesterday and would not come out.

Yes just minutes after ordering some Chineese take out I realized that going over 25 MPH was just not going to happen without screwing up the drivetrain.

Had to run home and grab the Benz and as a result my chicken was not as warm as usual. Oh well, I guess it could have been worse. I mean imagine if I used this truck for a commercial purpose, or was on the job site. Actually at that moment I was starving so a few back roads and I was home. No big deal, more details to follow.


-- Edited by SELLC at 21:13, 2009-03-03

__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



User

Status: Offline
Posts: 198
Date:
RE: Stuck in low range!


Is that cause a diesel benz goes 0-60 in about two and a half fuckin' years?

LMAO :D

__________________
We do PRECISION GUESSWORK based on vague assumptions and unreliable data of dubious accuracy provided by persons of questionable intellectual capacity. Now what can we fix for you today?


User

Status: Offline
Posts: 198
Date:

What did you have it in low range for, anyway?

__________________
We do PRECISION GUESSWORK based on vague assumptions and unreliable data of dubious accuracy provided by persons of questionable intellectual capacity. Now what can we fix for you today?


OUT-OF-HAND

Status: Offline
Posts: 8667
Date:

I myself drive a V8 5.6 Liter OHC 560 Mercedes (Gasoline). I know nothing about going slow in a Mercedes.

Sometimes I think that unless I lift the front tires of a W126 Benz, it wont get done.

We got a few roads around here that are solid ice, and I wanted to cross a busy intersection rather quickly, so I turned on the 4X4. I havent even looked at it since, been quite busy around here. I got three LT1 overhauls I have been nursing :) too bad most of them are going out of state and one out of the country.

I cant pull the truck in due to the condensation and water. $hit wreaks havoc on freshly cut steel. But I think as soon as this batch is out, Ill sneak her in for some serious loving.



__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



Veteran Guest

Status: Offline
Posts: 19
Date:

How many parts is this gonna take to "FIX" ???

__________________

I started this career with nothing....I still have most of it left.



RIP - Veteran User

Status: Offline
Posts: 337
Date:

"Stuck???" in low range?

Too bad we can't simply recreate the lunacy we traversed getting "stuck in" low range and find our way out of it....

If you can find someone to read the owners manual to you, have them flip to about page 133. It will describe that you aren't quite "stuck" in low range....



__________________


OUT-OF-HAND

Status: Offline
Posts: 8667
Date:

Its more like page 134.

Taken from the owners manual of a 2003 F250/350/450/550

Page #134

Switching from 4X4 LOW (4WD Low) to 4X4 HIGH (4WD High)or 2WD (2WD High)

1. Bring vehicle to a complete stop
2 Depress the brake
3. Place the gearshift in N (Neutral) (Automatic transmission) or depress the clutch (manual transmission)
4. Move the 4WD control to the 4X4 HIGH (4WD High) or 2WD (2WD High) position.
5. Hold the shift conditions until the LOW RANGE indicator light shuts off.
6. If the LOW RANGE indicator light does not shut off within 15 seconds, drive the vehicle above 5MPH (8 km/h), then repeat steps 1 through 5 before reporting any concerns to your dealer.

See all this time you and I have been on the WRONG PAGE pogo. Anyway, that would be once more your internet crystal ball has been wrong.

__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



RIP - Veteran User

Status: Offline
Posts: 337
Date:

<GASP> Oh, the horror... how could I have made such an aggrievous error - Sitting here "reading" an owners manual I don't have - and I came up a page out?

Actually, the copy I was perusing began the paragraph on page 133.... Kind of niggling when one considers that you apparently had a hard time being bothered in learning about a system that is a feature on the truck you drive...

Perhaps you should have availed yourself of the owners manual before you announced that your truck was "broken"....

Sidebar.... speaking of smegma or what-ever his name is, it is interesting that your main abuser has gone into hibernation.....

Look at the traffic this shithole is getting lately.....

__________________


OUT-OF-HAND

Status: Offline
Posts: 8667
Date:

There you go assuming things again Pogo.

For your information I was well aware of how the Low Range come on and went off. I been using it for some time now.

As I have tried many times, as always, and exactly per the manual, it still does not disengage. So Pogo.. Your magic crystal ball is once more been proven wrong.

I am starting to thing Pogo's crystal ball looks more like one of these-



__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



RIP - Veteran User

Status: Offline
Posts: 337
Date:

At least you're making headway.... If what you say is true, you have a better grasp of ESOF than you do of HEUI injectors....

Looking at the pics of how you treat this truck, it is no little wonder that there's much left of the 4WD system.

Given your past performance, what can anyone believe?

So.. what have you found as a problem with your 4WD? Any codes?

__________________


OUT-OF-HAND

Status: Offline
Posts: 8667
Date:

I am researching the system right now. Looks to be a lot like all the other Ford 4X4 systems.

The system seems to have several inputs such as, The brake pedal switch, The Gearshift position sensor,  and of course the 4X4 switch, sensors, solinoids and the relay.

I have not scanned it. It appears when disconecting the module it will shut off the lights, yet still be locked in 4X4. For people wondering where the 4X4 Module/Computer is on an 2003 F250, its just behind the glove box on the upper right side.

I am leaning twards what Pogo is now saying. That the truck has taken a bloody pounding and the computer system is most likley just fine. Considering this truck has sat in a body of water that covered the tires, its entirely possible it has become locked at the hubs as well. There is also the concern that the manual locks that are made from plastic have cracked/broken. Cheap ass Ford using plastic for something like that is somewhat bothering, but hey, things like that will ensure parts sales, keeping Ford from needing bail-out money. I am going to save the work I do with regards to the vacuum controled front hubs for a seperate thread, however we knew this truck needed front end work. All trucks will require suspension work/up-keep if you use them.

I will check for power at the motor today. Seems these modules must be programed for our trucks. Also seems to be an encoder on board the 4X4 computer. I am thinking about removing the 4X4 acuator motor on the transfer case, in effort to test and manually pull it out of 4X4. I got an engine that HAS to go out to our UPS terminal YESTERDAY, and this truck is the way.

Ill report back later as its Friday, and that means a busy day. I will also edit my post above to include page 133 of how to engage the 4X4 system for other folks whom may need help.


-- Edited by SELLC at 10:20, 2009-02-27

__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



RIP - Veteran User

Status: Offline
Posts: 337
Date:

Gawd..... there may be hope for you yet... Word of advice.... you will be much further ahead to read section 308-07A of the workshop manual - Diagnosis And Testing - Four Wheel Drive (4WD) Systems Electronic Shift    - Principles Of Operation.

You will study the system without a WSM and come to conclusions.... these conclusions will be wrong (I am not being derogatory, here) and the system will operate in such a way that your assumptions will lead you astray.

Word to the wise.... I work on SuperDuty trucks each and every day... even without the diesel engine option, these trucks can have complex subsystems. I would not consider working on one of these trucks without factory manuals - and I would consider that Pogo, the living, breathing ass that he is, has more than a passing familiarity with the SuperDuty Ford...

Back in the late sixties, when I first applied my talents to this trade, the knowledge quotient was low.... almost everythijng we needed to know could be committed to memory.... Today, without authoratative documentation - all you are going to do is fuck somebody... you, your customer or both....

__________________


OUT-OF-HAND

Status: Offline
Posts: 8667
Date:

Well I am out of 4X4 Low.

With the truck stuck in the driveway I pulled off the motor to see if it was actuating. It was not. So then I bench tested the 4X4 motor (transfer case) and found that it was working with great percision. I think Ford has done a good job with the new design.

Anyway it took me less time to pull the motor and manually switch it out of 4X4 than it did testing it to ensure it wasnt opperator error.

To do this you will need a 10mm socket and ratchet with extensions. Drop the transfer case shield that is held in by 4 10mm bolts.

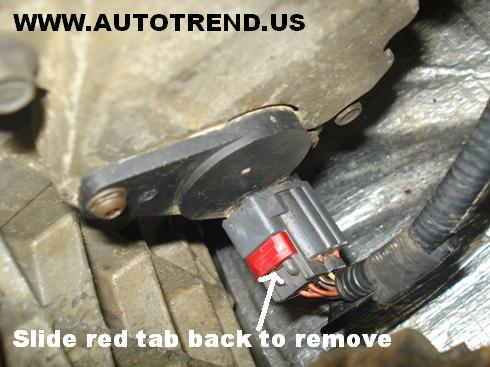

Push back the red tab on the sensor harness that attaches to the 4X4 motor, and remove the power harness that runs to the motor itself. The motor is held on with 3 10mm bolts. Be careful with them as Fords used blue locktight on the bolts.

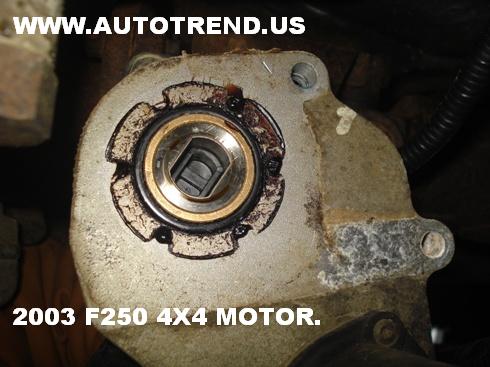

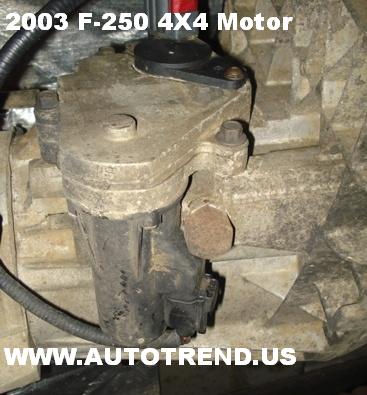

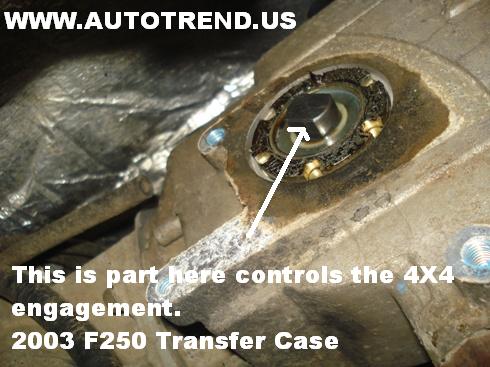

After you remove the motor you will see how it opperates. I used an adjustable wrench to manualy turn the engagement shaft that protrudes from the transfer case. I think I turned it clockwise, but once its out of 4X4 you will notice the front drive shaft will have a fair amount of side to side. You can plug the motor in and drive it to be shure before you re-install.

To re-install the motor you must adjust the position of the motor socket, that slides over that protruding part you just manualy disengaged. Do this by using battery power direct to the motor, or just use a 1/2 ratchet to manually manuver it in possition. If the motor socket is not in the right possition, it will not go on.

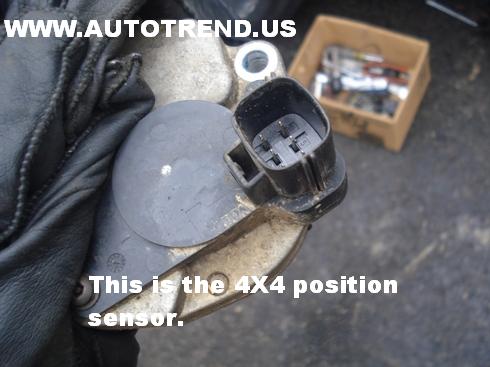

Here are some photos. I was able to get back to work and now its time to see what went wrong.
