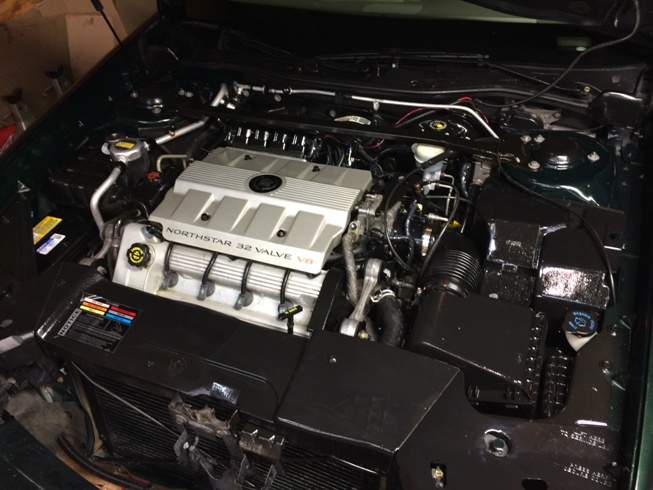

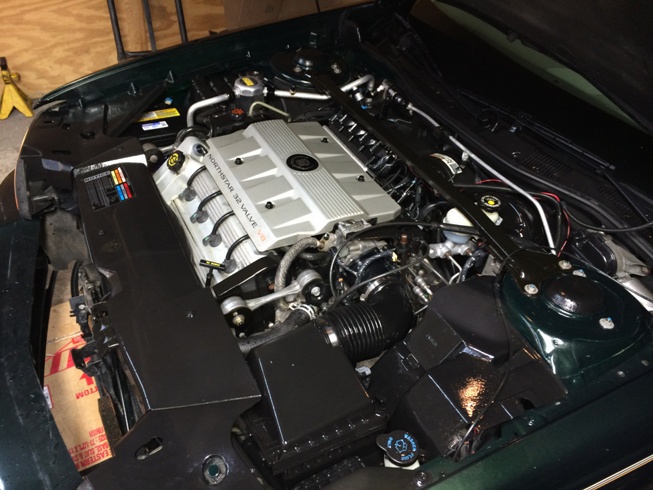

Cadillac Northstar Engine Water Pump + Housing / Crossover leaking coolant.


I don't know what it is, but more and more I am seeing these Cadillac Northstar engines coming in with leaking water pump crossover housings. There are 4 gaskets between this housing that are often times overlooked when doing just a water pump. With the age of the Northstar engines getting up there these gaskets often times leak and many people have a hard timing finding the leak. What usually happens is they leak when the engine cools off, often times leaking down the side of the block.

Like anything else with the Northstar engine the intake must come off, and it's not too awful bad getting the housing out once you get the harness moved over. It's about a 7 hour job per the "book" and you can count on having some fun along the way.

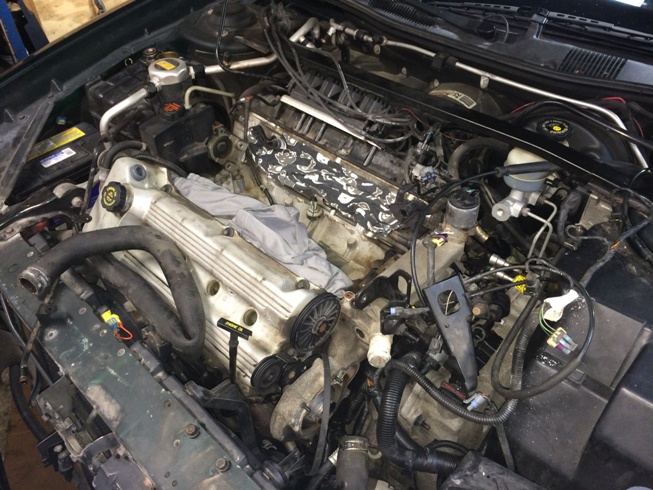

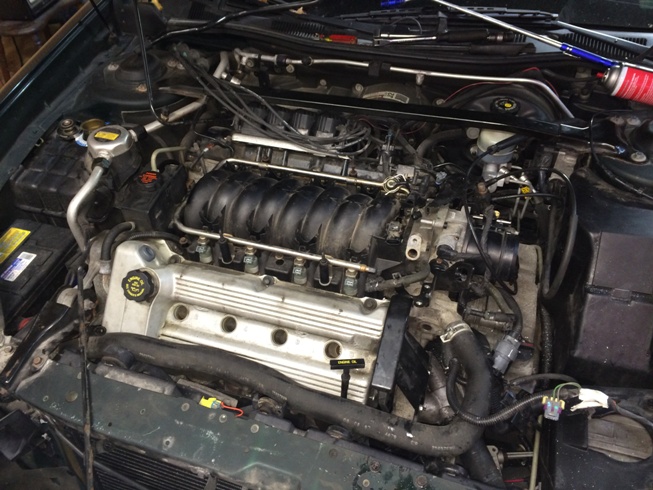

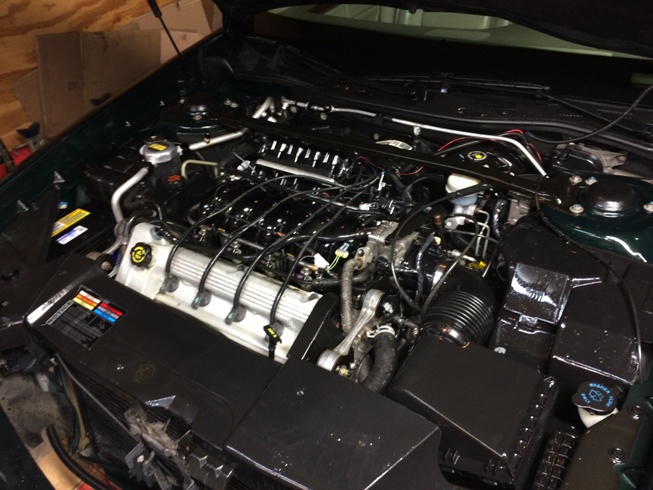

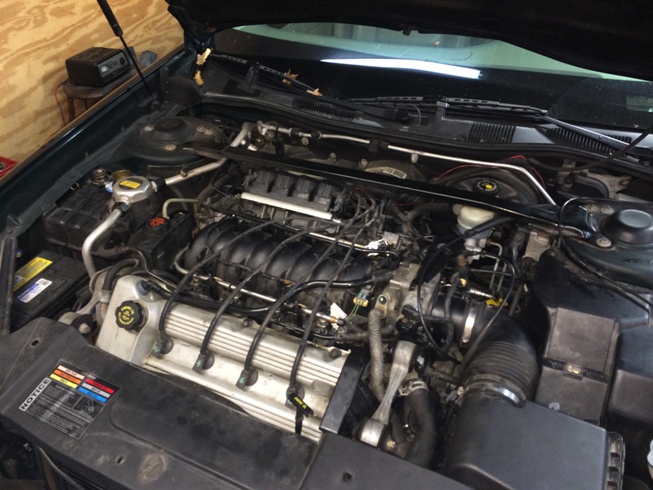

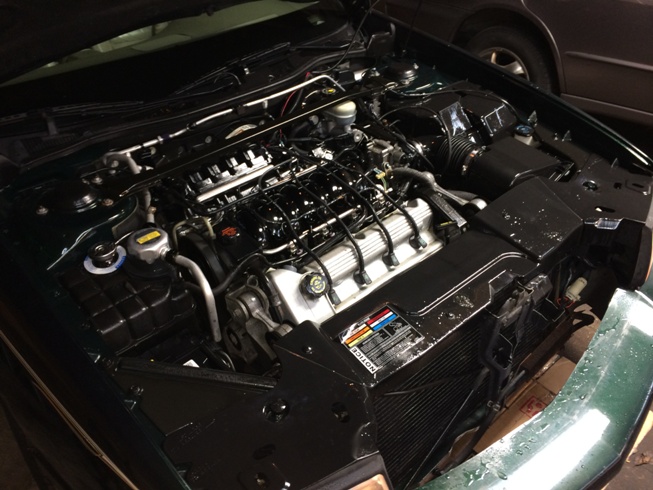

At this stage I am well into the job with the intake cover and air box removed. I also have the throttle body removed at this point inspecting where all the coolant leaks are coming from. While it's quite clear the pump itself is leaking, what many fail to realize is the crossover housings on these Northstar engines have gaskets very prone to leakage. On this engine the lower block to crossover gasket was leaking coolant onto the transmission, from there it would just run all over making the leak very hard to find. Often times these crossover seals like to leak when sitting, and when they get bad like these they leak all the time, causing people to refill the coolant often. If your Northstar engine is getting to the 100K mark, then you should have these seals done at the same time as your water pump, otherwise you will still be adding coolant every so often wondering where its going. If you are using Dex Cool then you know thats expensive in of itself.

In this photo you can see the water pump crossover housing with the water pump and t-stat installed.

Here, just under the intake manifold throttle body hole you can see the massive alumimum crossover housing that holds the pump, t-stat, belt tensioner, and EGR valve. They say Chevy runs deep, but clearly this Cadillac crossover housing runs the deeper! LOL!

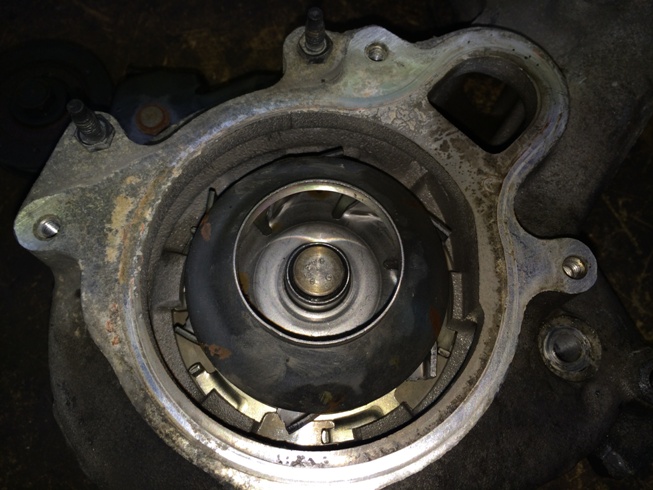

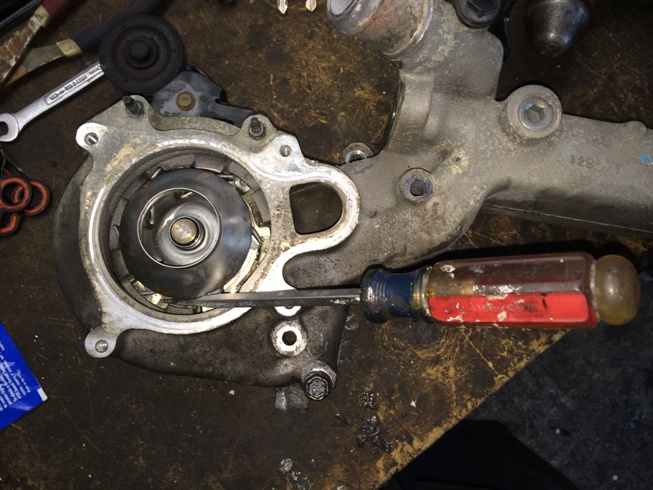

Here you can see the termostat/water pump crossover housing cover removed. Exposed is the water pump that requires a special tool to remove and install.

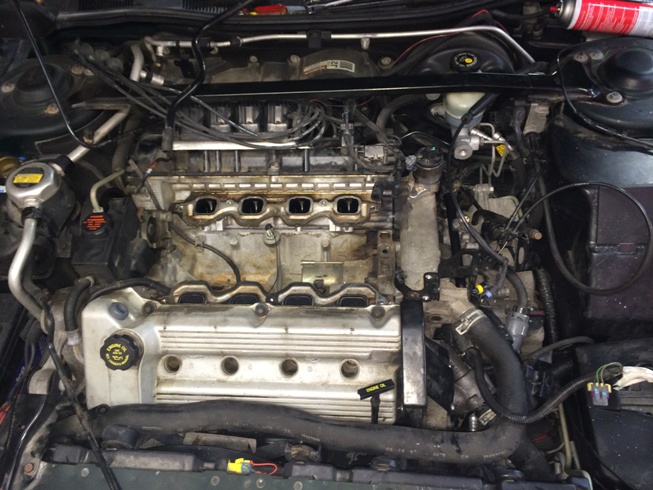

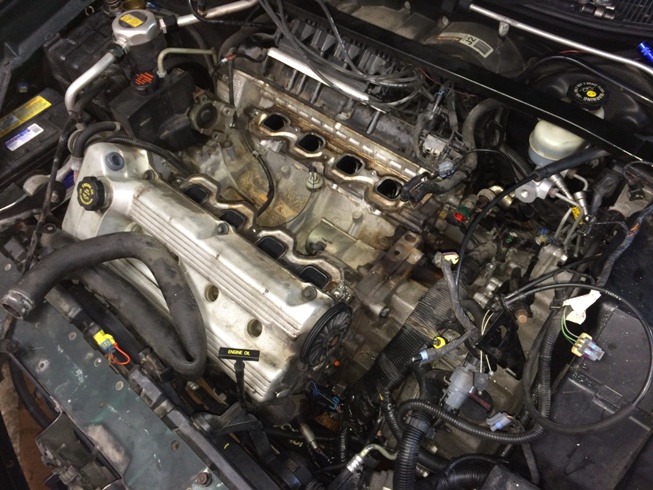

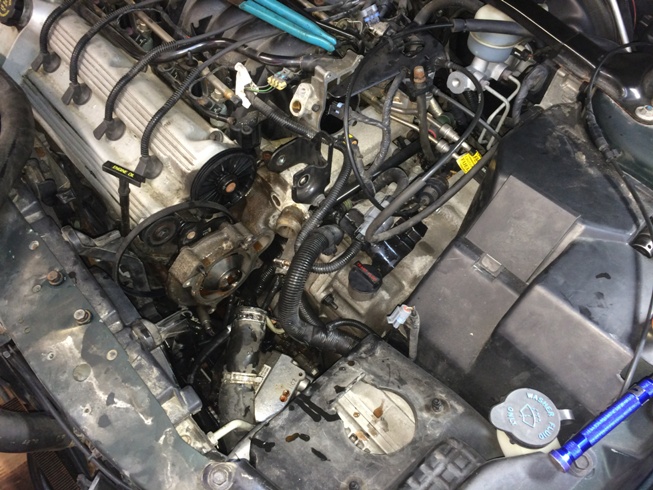

Here the intake manifold is removed to make way for the massive crossover housing to clear. It is important to cover the intake manifold runners to prevent anything from falling into the engine. I have these rags removed in other photos for the purpose of showing what it actually looks like, but be sure you keep them covered. If you know your engine is leaking from the crossover gaskets to the block then you can just yank the intake with the throttle body attached and save a little time.

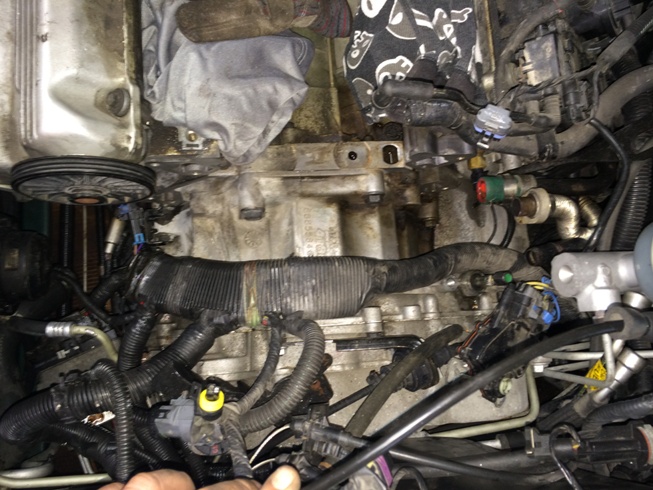

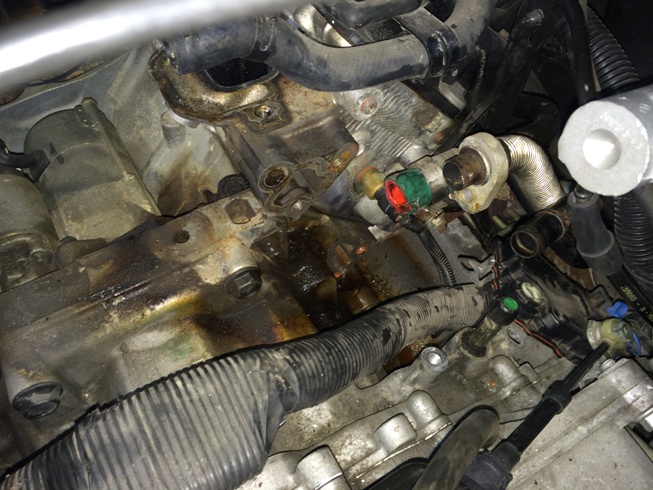

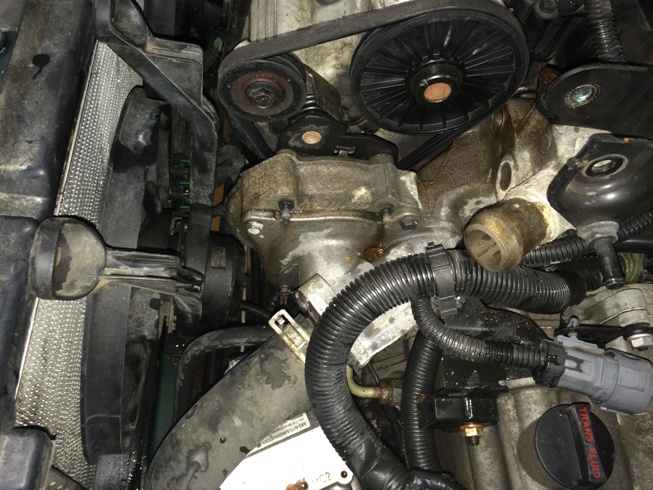

Here is the engine with the crossover housing removed. It's somewhat tricky to get the bolts out with the main harness running next to the housing, but with a little work you can move the harness and access the bolts.

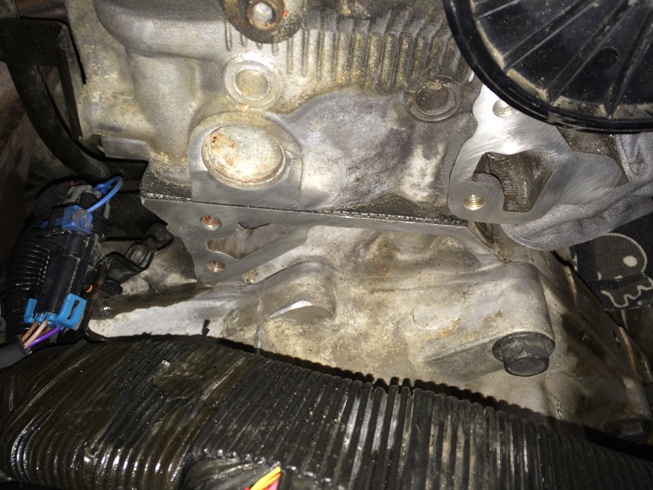

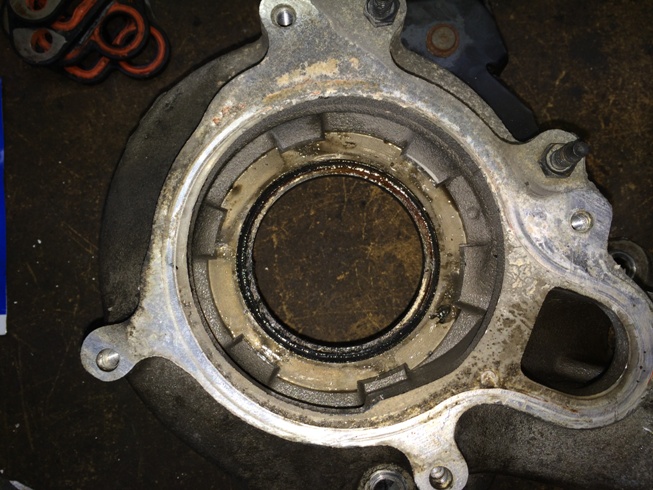

Here is the left side of the block that the housing and gaskets mount to.



And here is the right side.

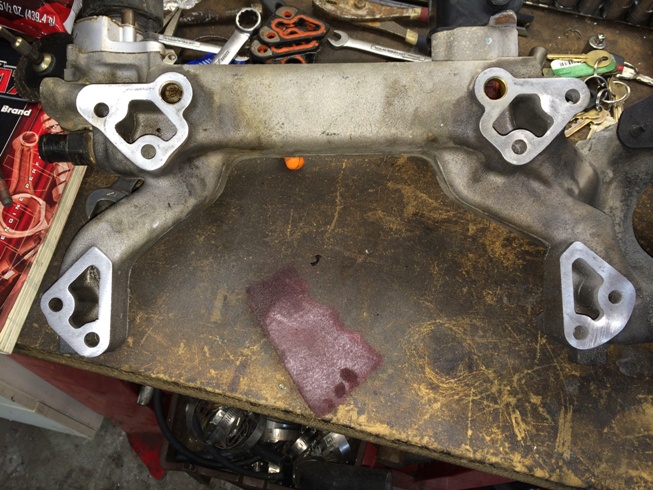

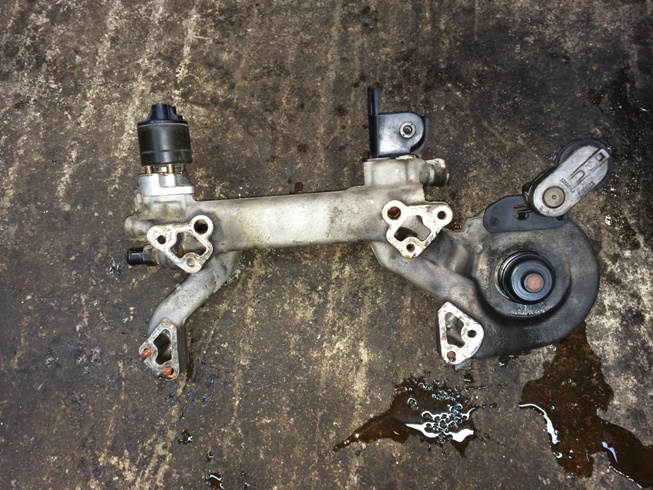

This is the backside of the water pump crossover housing that mates to the block

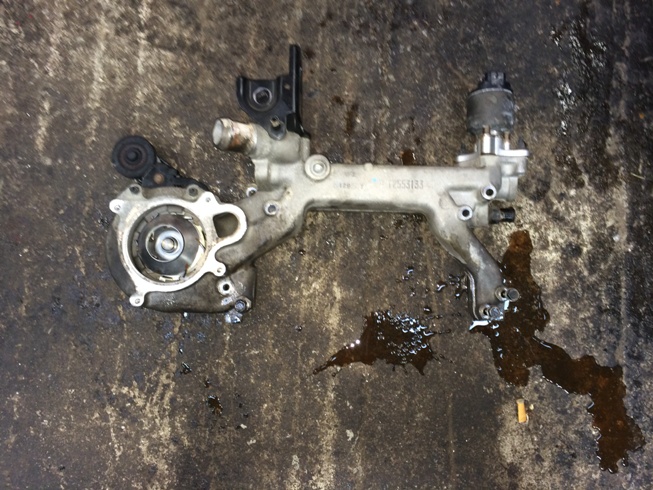

This is the front side (with water pump still installed) of the water pump crossover.

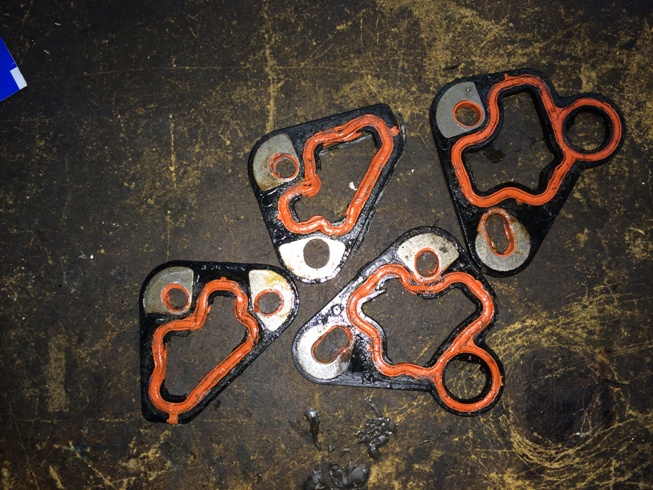

Here are the 4 gaskets that leak coolant, slowly. I have heard stories about Northstar engines consuming coolant, my guess is it's really these seals and they are so deep in the engine not many can even see the leak.

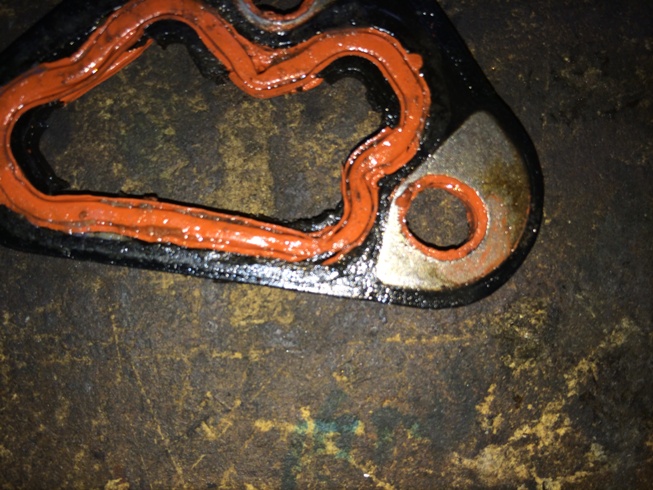

This is a close-up of how the seals split and allow coolant to leak. Victor Reinz sells a kit containing 11 gaskets part number GS33437 otherwise you can buy them from Fel-Pro for $8.97 each (You need 4).

So there you are... When you have a Cadillac that has the Northstar engine with a customer complaint of a slow coolant leak it's a good chance the crossover gaskets are leaking.



__________________

State of Michigan Certified Master Auto Mechanic +2

Specialty Certified Since 1994



FAR BEYOND DRIVEN

Status: Offline
Posts: 3649
Date:

Nice write up!

__________________

"If you can convince the lowest white man he's better than the best colored man, he won't notice you're picking his pocket. Hell, give him somebody to look down on, and he'll empty his pockets for you."     Lyndon B. Johnson



IN THE RUNNING

Status: Offline
Posts: 1736
Date:

Yo SELLC,

Yeah, great thread ! At least this job ( like most cars ) might provide you with bread & butter for a while, since they're all going to be bound to leak sooner or later. I'm surprised that the leak doesn't hold-off for longer since those gaskets look like they're pretty heavy-duty, & not meant to ever leak.

Rastus

__________________


OUT-OF-HAND

Status: Online
Posts: 9165
Date:

It doesn't end there... LOL! But I wished it did.

Anyway, I have always had a soft spot for these Northstar engines and the SLS and STS Cadillacs... That being the case I figured I would do a little write up about a popular engine. Of course there are many other jobs I don't even bother taking photos of, but this one just seemed to be a juicy job for a write up.

Picking up where we left off,

Here you can see the old water pump installed into the housing.

Here is a shot of my "Special tool" for the removal/install of Cadillac pumps. If you have done gas tank sending units it should be pretty much a snap.

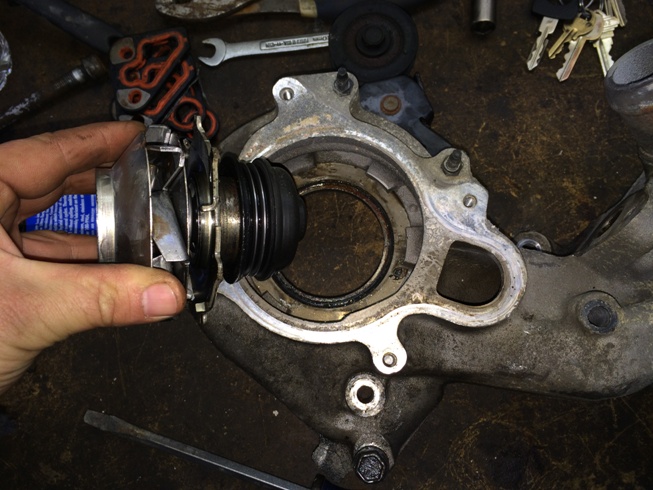

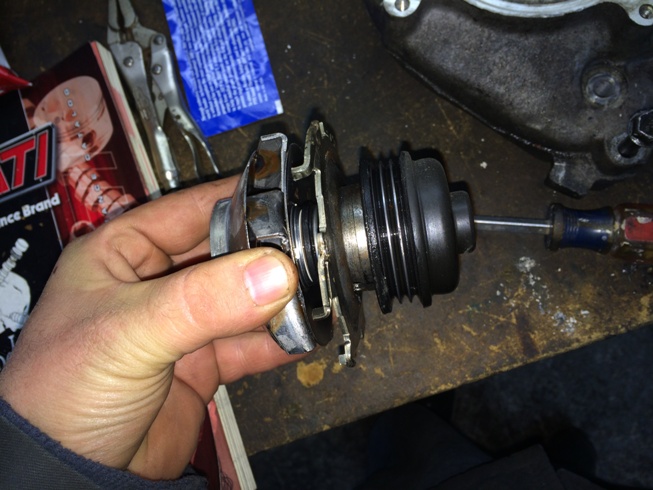

Here is a look at the old pump being removed after the spanner ring has been let free.

Take a look at how small that o-ring is sealing the water pump! Anyway, you have to clean this area real good and be sure to coat your new o-ring with vasaline to ensure it does not tear when installing the new pump.

This is all that's to the Northstar water pump. Not much but what a PITA!

Getting ready to clean the mating surfaces with my trusty ROLOC pads!

Here is the surface area after cleaning

And on the crossover itself.

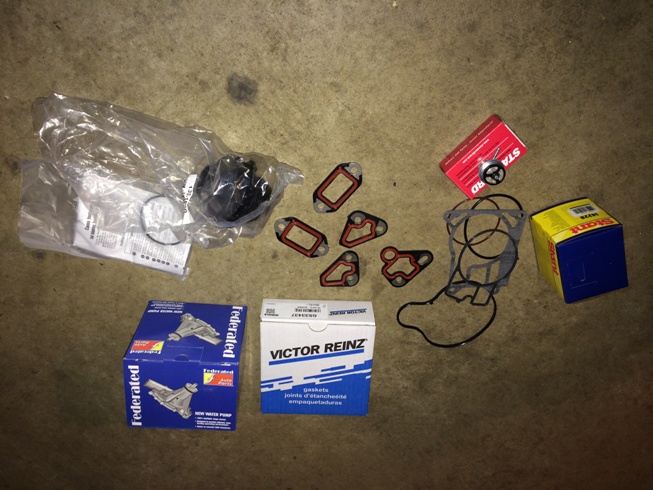

Here is a shot of the new gasket kit, clearly you can see how swolen the old ones were.
